Cheese Thermoforming Vacuum Skin Packaging Machine

DZL-VSP Series

Thermoforming vacuum skin packaging machine is also named thermoforming VSP packer .
It’s able to do the whole process from package forming, optional filling, sealing, and cutting. It workable for the various rigid plastic film to form a firm container. After heat and vacuum, the top fil will cover the product closely, just like protection of a second skin. The vacuum skin packaging not only promotes the visual appeal but extends the shelf life greatly. Both the package dimension and packing speed can be customized accordingly.


Feature

Application

Optional

Equipment configuration

Specifications

Product Tags

Safety
Safety is our top concern in machine design. To ensure max safety for the operators, we have installed multiply sensors in many parts of the machine, including protective covers. If the operator opens the protective covers, the machine will be sensed to stop running immediately.

High-efficiency
High efficiency enables us to make full use of the packaging material and reduce cost & waste. With high stability and reliability, our equipment can reduce downtime, thus the high production capacity and uniform packaging result can be ensured.

Simple operation
Simple operation is our key feature as a highly automated packaging equipping. In terms of operation, we adopt PLC modular system control, which can be acquired through short-time learning. Besides machine control, mold replacement and daily maintenance can also be mastered easily. We're keeping on technology innovation to make machine operation and maintenance as easy as possible.

Flexible
To fit into various products, our excellent packaging design can custom the package in shape and volume. It grants customers better flexibility and higher utilization in the application. The packaging shape can be customized, such as round, rectangular and other shapes.
Special structure design can also be customized, such as hook hole, easy tear corner, etc.


  • Previous:
  • Next:

  • Cheese Thermoforming Vacuum Skin Packaging Machine

    In addition to creating an airtight second skin for a wide range of products, thermoform skin packaging offers additional benefits to improve almost any product, giving it more attractive features for consumers.



    Thermoform Skin Pack Advantages

    • Option to use a rigid support as a tray.
    • Vertical display of the package avoiding the product’s movement inside. Product shelf life increase.
    • Retains liquids and gases.
    • Enhances the product giving it the leading role.
    • Option to use a flexible support. Option to add an additional lid to use as a labeling support.
    • It also makes possible the inclusion of protective gas or promotional items (recipes, spoons …) between both films.
    • Allows the customization of the pack in terms of shape and dimensions. The type of packaging material used in skin packaging allows for easy opening packages.

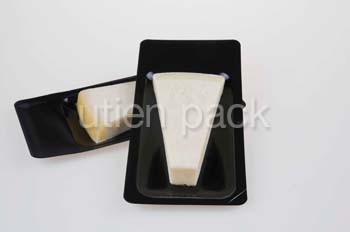

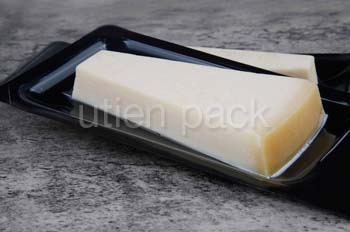

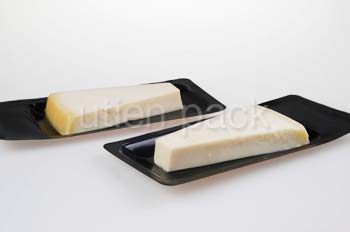

    cheese skin packaging cheese skin packaging2 cheese skin packaging3

    One or more of the following third-party accessories can be combined into our packaging machine to create a more complete automated packaging production line.

    • Multi-head weighing system
    • Ultraviolet sterilization system
    • Metal Detector
    • Online automatic labeling
    • Gas Mixer
    • Conveyor system
    • Inkjet printing or thermal transfer system
    • Automatic screening system

    UTIEN PACK3 UTIEN PACK2 UTIEN PACK

    1.Vacuum pump of German Busch, with reliable and stable quality
    2.304 stainless steel framework, accommodating to food hygiene standard.
    3.The PLC control system, making the operation more simple and convenient.
    4.Pneumatic components of Japan’s SMC, with accurate positioning and low failure rate.
    5.Electrical components of French Schneider, ensuring stable operation
    6.The mold of high-quality aluminum alloy, corrosion-resistant, high-temperature resistant, and oxidation-resistant.

    The regular model are DZL-320R, DZL-420R, DZL-520R (320, 420, 520 means the width of the bottom forming film as 320mm, 420mm, and 520mm). Smaller and bigger size thermoforming vacuum packaging machines are available on request.

    Mode DZL-VSP Series
    Speed(cycles/min) 6-8
    Packaging option Rigid film,skin packaging
    Pack types Rectangular and round,Basic formats and freely definable formats…
    Film widths(mm) 320,420,520
    Special widths(mm) 380-640
    Maximum forming depth(mm) 50
    Advance Length(mm) <500
    Die changing system Drawer system,manual
    Power consumption(kW) 18
    Machine dimensions(mm) 6000×1100×1900Customizable
